Sale!

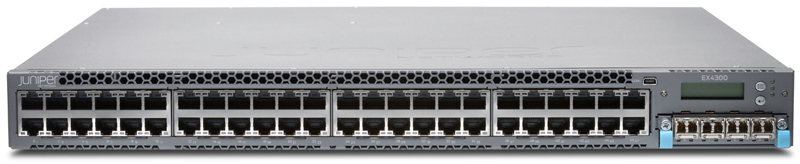

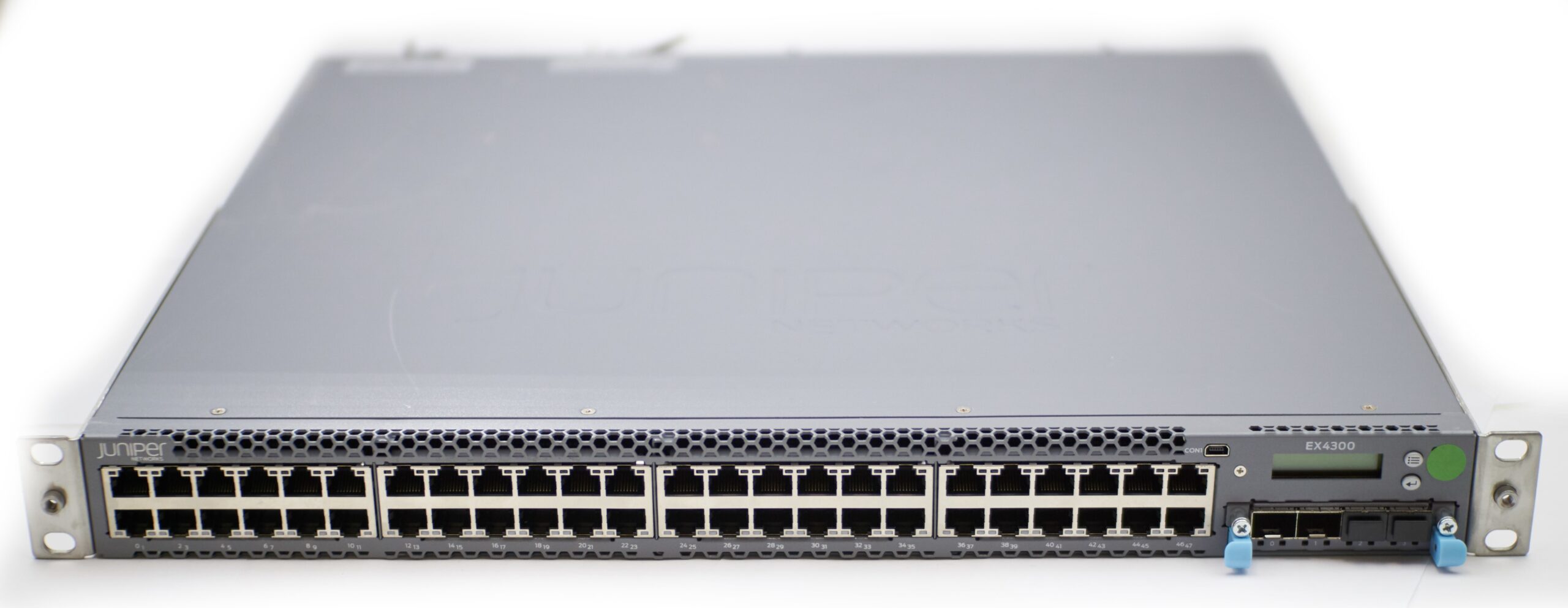

Juniper Networks EX4300-48P Switch

$4,999.00

Product Details

  • 48P
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 40 Gigabit QSFP+
  • front to back airflow
  • rack-mountable

1 in stock

Category:

Description

Main Features
  • 48P
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 40 Gigabit QSFP+
  • front to back airflow
  • rack-mountable
  • PoE+ (900 W)

The Juniper Networks EX4300 line of Ethernet switch with Virtual Chassis technology combines the carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus, and branch office environments.

Offering a full suite of Layer 2 and Layer 3 switching capabilities, the EX4300 satisfies a variety of high-performance applications, including branch, campus, and data center access deployments as well as Gigabit Ethernet (GbE) access deployments. As requirements grow, Juniper Networks Virtual Chassis technology allows up to 10 EX4300 switches to be interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments. The EX4300 switch can be interconnected over multiple 40GbE quad small form-factor pluggable plus (QSFP+) transceiver ports to form a 320 gigabits per second (Gbps) backplane.

Tech Specs

Specifications are provided by the manufacturer.

  • Header

    • Netscreen
    • Juniper, Juniper Networks
    • Juniper Networks EX Series
    • EX4300-48P
    • 1

  • Chassis

    • Front to back airflow
    • Status LCD
    • 0
    • 1

  • Processor

    • PowerPC
    • 1
    • 1.5 GHZ

  • RAM

    • 2 GB

  • Flash Memory

    • 2 GB, 2 GB

  • Performance

    • Switching capacity: 496 Gbps, Throughput: 369 Mpps

  • Capacity

    • ARP entries: 64000, IPv4 routes: 32000, IPv6 routes: 18000, Maximum of neighboring networks: 20000, Multiple Spanning Tree Protocol instances: 64, Virtual interfaces (VLANs): 4093, VLAN Spanning Tree Protocol instances: 510

  • Networking

    • Switch
    • Network hubs and switches
    • Gigabit Ethernet
    • Rack-mountable
    • Stackable
    • 10
    • 48
    • Layer 3
    • BGP, Bidirectional Forwarding Detection (BFD), CIDR, IGMP, IGMPv2, IGMPv3, IS-IS, MPLS, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP, VRRPv3
    • 64K entries
    • 9216 bytes
    • Yes
    • CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Telnet
    • PoE+
    • 900 watt
    • LCD display
    • Access Control List (ACL) support, ARP support, ASIC VPN, Auto-uplink (auto MDI/MDI-X), BOOTP support, Captive Portal, Class of Service (CoS), DDos attack prevention, Deficit Weighted Round Robin (DWRR), DHCP client, DHCP proxy, DHCP relay, DHCP server, DHCP snooping, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flow control, Front to back airflow, Graceful Route Engine Switchover (GRES), High Availability, Hot swappable dual fans, IGMP snooping, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), MLD snooping, Multicast Source Discovery Protocol (MSDP), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), NTP time synchronization, Per-VLAN Spanning Tree Plus (PVST+), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, Redundant trunk group (RTG), sFlow, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority (SP), Tagged VLAN, Temperature sensor, Time Domain Reflectometry (TDR), Trivial File Transfer Protocol (TFTP) support, Virtual Chassis technology, Virtual Routing and Forwarding (VRF), VLAN Spanning Tree Protocol (VSTP), VLAN support, Weighted Random Early Detection (WRED)
    • IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ak, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, ITU-T G.8032

  • Ports

    • 48
    • 10/100/1000 (PoE+)

  • Ports (2nd)

    • 4
    • 40 Gigabit QSFP+

  • Expansion Slots

    • 1 (total) / 1 (free) x expansion slot

  • Interface Provided

    • 4 x QSFP+ uplink, 48 x 1000Base-T RJ-45 30 W

  • Power Device

    • Internal power supply
    • Hot-plug
    • Optional
    • 1+1 (with optional power supply)
    • 1
    • 2
    • 1100 watt
    • AC 120/230 V
    • 50/60 hertz

  • Miscellaneous

    • Gray
    • 1
    • MD5, PEAP, TLS, TTLS
    • Extensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS+
    • CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, cUL, EMC, EN 300386, EN 60950-1, EN 60950-1:2006, EN55022 Class A, EN55024, FCC CFR47 Part 15, GR-1089-CORE, ICES-003 Class A, IEC 60950-1, ISO 7779, NEBS, RoHS 6/6, TUV GS, UL 60950-1, VCCI Class A

  • Dimensions & Weight

    • 17.4 inch
    • 16.4 inch
    • 1.7 inch
    • 16.09 lbs

  • Service & Support

    • Limited lifetime warranty

  • Service & Support Details

    • Limited warranty – lifetime

  • Environmental Parameters

    • 32 degree Fahrenheit
    • 113 degree Fahrenheit
    • -40 degree Fahrenheit
    • 158 degree Fahrenheit
    • 10 – 85% (non-condensing)
    • 0 – 95% (non-condensing)

Additional information

Weight 20 kg
Dimensions 17 × 18 × 1.7 cm
